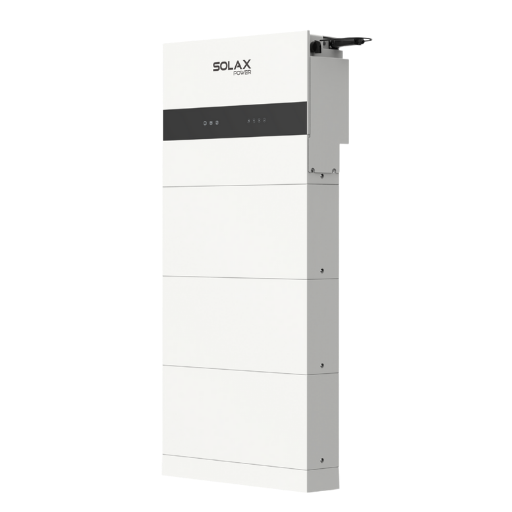

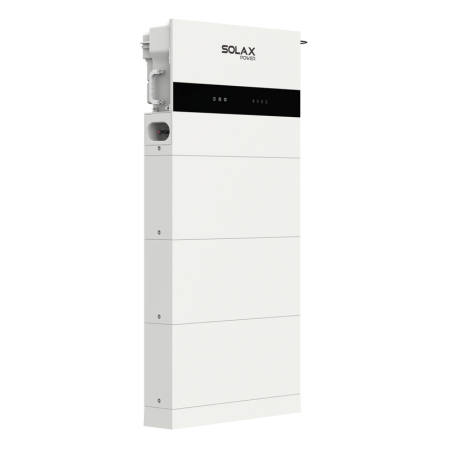

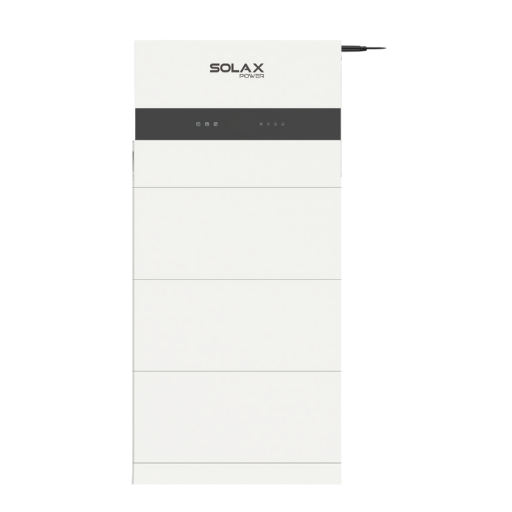

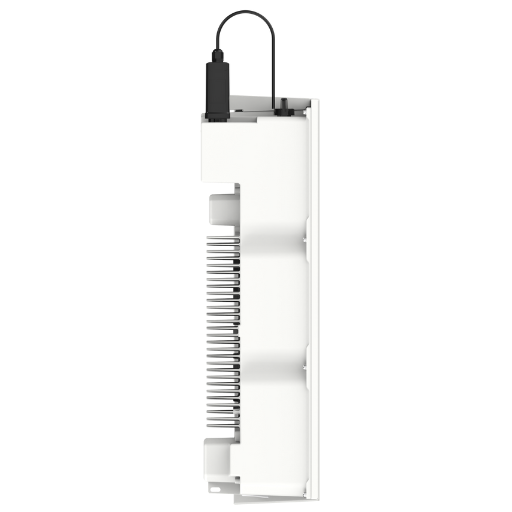

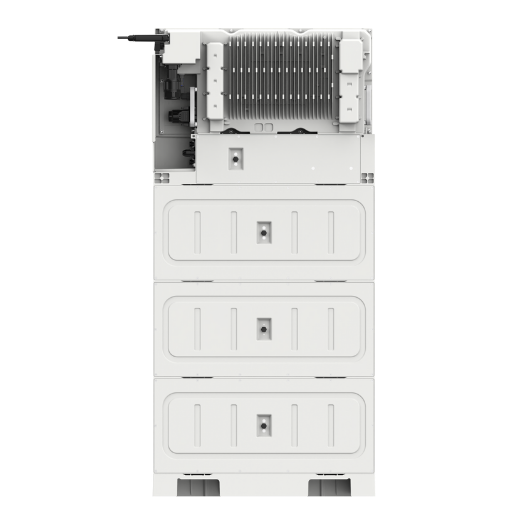

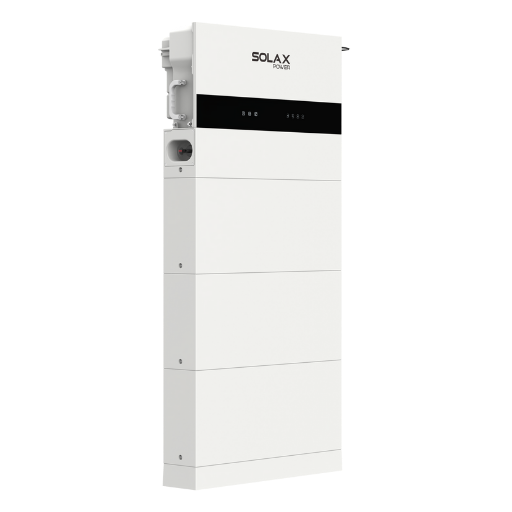

Residential ESS

X3-IES

4K / 6K / 8K / 10K / 12K / 15K

Hệ thống năng lượng thế hệ mới với thiết kế toàn diện và chỉ cần cắm là chạy, giúp lắp đặt đơn giản hơn. Hỗ trợ quản lý tải thông minh và cấu hình lưới điện quy mô nhỏ, sản phẩm được thiết kế để đáp ứng nhu cầu ngày càng tăng của các gia đình hiện đại và mạng lưới năng lượng.

Xem video
Tải dữ liệu

Product Advantage

Tối ưu sản lượng điện với dòng sạc/xả 50A và vượt công suất đầu vào PV 200%, dựa trên dự đoán bằng AI về sản lượng và mức tiêu thụ điện. Kết nối liền mạch với Nhà máy điện ảo (VPP) nhờ tương thích giao thức rộng— là giải pháp lý tưởng để lưu trữ năng lượng hiệu suất cao mà không cần đánh đổi các yếu tố khác.

Smart Management

Al ready, forecasting solar generation and home consumption forsmart energy management strategy control*
VPP ready with a variety of compatibility(OpenADR, IEEE2030.5,FCAS, AP|)**
Smart loads management (e.g., heat pump, smart EV charger)
Micro-grid support for real-time grid/off-grid balancing
Wireless meter compatibility
Global MPP scan for optimal energy harvest

Assured Reliability

lP66 ingress protection
Type ll SPD on AC&DC side
AFCl protection (optional)
Up to 200% EPS output for 10s
UPS-level switchover time <10ms

High Performance

Max. 50A charge/discharge current
200% oversizing and 200% PV input power
Low start-up voltage for longer operation
Cycle life > 6000 cycles

Flexible Adaptability

All-in-one, plug-and-play design
Max. 20A DC input current for highpower solar panel

Product Parameters

X3-IES-4K
X3-IES-5K
X3-IES-6K
X3-IES-8K
X3-IES-10K
X3-IES-12K
X3-IES-15K

X3-IES-4K
- PV INPUT

  Max. recommended PV array power
  8 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  4000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  4 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight
  37 kg
X3-IES-5K
- PV INPUT

  Max. recommended PV array power
  10 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  5000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  5 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight
  37 kg
X3-IES-6K
- PV INPUT

  Max. recommended PV array power
  12 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  6000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  6 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight
  37 kg
X3-IES-8K
- PV INPUT

  Max. recommended PV array power
  16 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(2/1)
  Max. input current per MPPT
  32 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  8000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  8 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight
  37 kg
X3-IES-10K
- PV INPUT

  Max. recommended PV array power
  20 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(2/1)
  Max. input current per MPPT
  32 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  10000 W
  (AS4777 9999)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  10 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight
  37 kg
X3-IES-12K
- PV INPUT

  Max. recommended PV array power
  24 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(2/1)
  Max. input current per MPPT
  32 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  12000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  12 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight
  37 kg
X3-IES-15K
- PV INPUT

  Max. recommended PV array power
  30 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(2/1)
  Max. input current per MPPT
  32 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  15000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  15 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight
  37 kg
