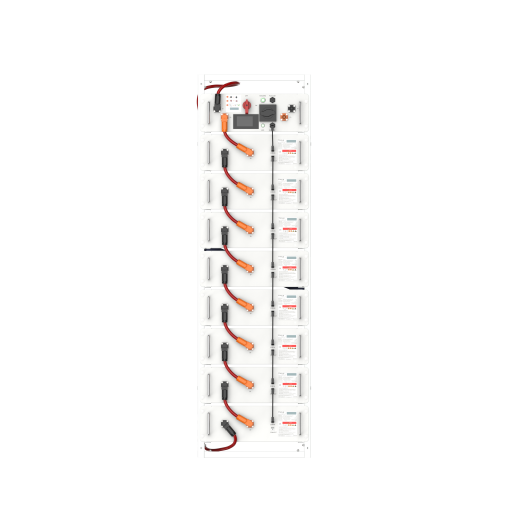

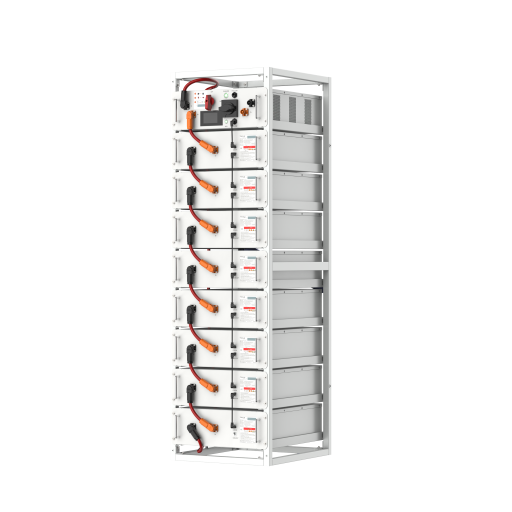

C & I Batteries
TSYS-HR76
-
7.68 kWh | LFP 150Ah
Ưu điểm sản phẩm
TSYS-HR76 được thiết kế để mang lại sự linh hoạt và hoạt động đáng tin cậy, cung cấp dải nhiệt độ hoạt động từ 0°C đến 55°C khi sạc và -20°C đến 55°C khi xả. Thiết kế có thể mở rộng cho phép lắp đặt từ 5 đến 14 mô-đun mỗi bộ, cung cấp dải điện áp danh định từ 256,0 V đến 716,8 V. Với công suất định mức từ 23,0 kW đến 64,5 kW, sản phẩm đảm bảo hiệu suất linh hoạt cho nhiều ứng dụng lưu trữ năng lượng thương mại và công nghiệp.
Efficiency
Delivers sustained 1C performance
Embedded installation design for rapid deployment
Modular architecture for streamlined maintenance
Intelligence
Automated charge/discharge management
Multi-level protection: overcharge, over-discharge, thermal extremes
Reliability
High-safety LFP battery
Extended cycle life for long-term performance
Flexible Configuration
Scalable battery cluster (5–14 modules per set)
Remote firmware upgrade support
Full compatibility with SolaX inverters
Thông số sản phẩm
-
T-HR38.4 / T-HR38.4P-
SYSTEM SPECIFICATION
Module quantities 5 Nominal energy 38.4 kWh Nominal voltage 256.0 V Max. charge / discharge current 150 A Rated power 23.0 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR46.0 / T-HR46.0P
-
SYSTEM SPECIFICATION
Module quantities 6 Nominal energy 46.0 kWh Nominal voltage 307.2 V Max. charge / discharge current 150 A Rated power 27.6 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR53.7 / T-HR53.7P
-
SYSTEM SPECIFICATION
Module quantities 7 Nominal energy 53.7 kWh Nominal voltage 358.4 V Max. charge / discharge current 150 A Rated power 32.2 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR61.4 / T-HR61.4P
-
SYSTEM SPECIFICATION
Module quantities 8 Nominal energy 61.4 kWh Nominal voltage 409.6 V Max. charge / discharge current 150 A Rated power 36.8 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR69.2 / T-HR69.2P
-
SYSTEM SPECIFICATION
Module quantities 9 Nominal energy 69.1 kWh Nominal voltage 460.8 V Max. charge / discharge current 150 A Rated power 41.4 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR76.8 / T-HR76.8P
-
SYSTEM SPECIFICATION
Module quantities 10 Nominal energy 76.8 kWh Nominal voltage 512.0 V Max. charge / discharge current 150 A Rated power 46.0 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR84.4 / T-HR84.4P
-
SYSTEM SPECIFICATION
Module quantities 11 Nominal energy 84.4 kWh Nominal voltage 563.2 V Max. charge / discharge current 150 A Rated power 50.6 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR92.1 / T-HR92.1P
-
SYSTEM SPECIFICATION
Module quantities 12 Nominal energy 92.1 kWh Nominal voltage 614.4 V Max. charge / discharge current 150 A Rated power 55.2 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR99.8 / T-HR99.8P
-
SYSTEM SPECIFICATION
Module quantities 13 Nominal energy 99.8 kWh Nominal voltage 665.6 V Max. charge / discharge current 150 A Rated power 59.8 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR107.5 / T-HR107.5P
-
SYSTEM SPECIFICATION
Module quantities 14 Nominal energy 107.5 kWh Nominal voltage 716.8 V Max. charge / discharge current 150 A Rated power 64.5 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
