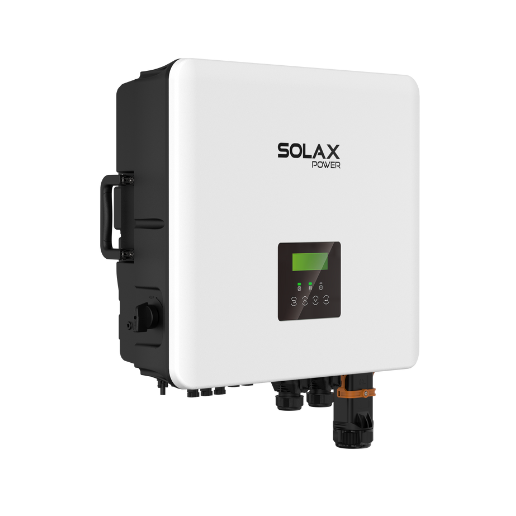

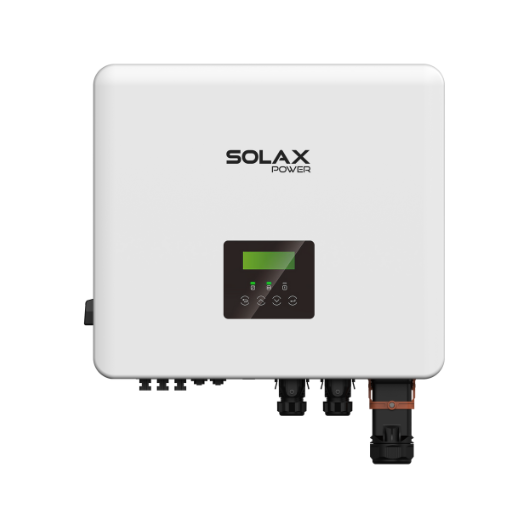

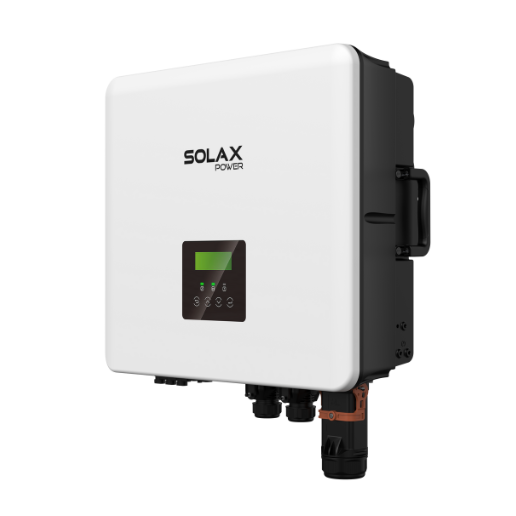

Hybrid Inverter

X3-HYB-G4 PRO

4kW / 5kW / 6kW / 8kW / 10kW / 12kW / 15kW

Biến tần SolaX X3-HYBRID G4 PRO với hệ thống 3 MPPT và đầu vào 20A mỗi bộ theo dõi, cùng với dải điện áp rộng 110–950V , tối ưu sản lượng điện mặt trời cho nhiều kiểu lắp đặt linh hoạt. Hỗ trợ V2X, điều khiển trực quan và hoàn toàn tương thích với VPP giúp thiết bị đáp ứng nhu cầu năng lượng tương lai.

Xem video
Tải dữ liệu

Product Advantage

Cấu trúc đầu vào mạnh mẽ có thể xử lý đầu vào PV lên đến 200% và hỗ trợ tảiba pha không cân bằng lên đến 5kW mỗi pha. Cổng pin kép và chức năng mở rộng 2-trong-1 cho phép cấu hình lưu trữ linh hoạt, trong khi các cổng đấu nối bổ sung và nắp che gọn gàng đảm bảo lắp đặt chuyên nghiệp, hợp lý.

High Performance

20A DC input per MPPT with 3 trackers
200% PV oversizing and up to 110% AC output
Ultra-wide MPPT range of 110-950V

Smart Management

V2X ready for smart home energy integration
Smart Schedule, Smart Scene, and 7*24h TOU
Wireless meter compatibility
VPP ready with a variety of compatibility(OpenADR, IEEE2030.5, FCAS, API)

Flexible Adaptability

Dual battery ports & 2-in-1 function for expansion

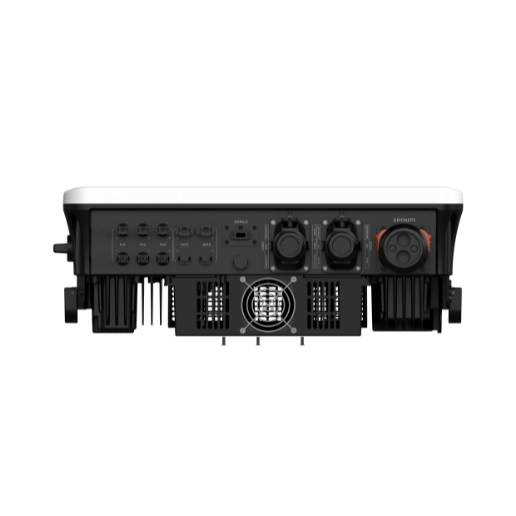

Additional ports for simplified wiring and installation
Functional and stylish wiring cover
Microgrid and generator modes for versatile operations

Assured Reliability

Up to 200% EPS output for 10s
UPS-level switchover time<10ms
Optional Rapid Shutdown function for enhanced safety
Type II SPD on AC&DC side
Optional AFCI protection*

Product Parameters

X3-HYB-4.0-P
X3-HYB-5.0-P
X3-HYB-6.0-P
X3-HYB-8.0-P
X3-HYB-10.0-P
X3-HYB-12.0-P
X3-HYB-15.0-P

X3-HYB-4.0-P
- PV INPUT

  Max. recommended PV array power 8 kWp
  MPPT voltage range 110~950V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 20A/20 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 4000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-5.0-P
- PV INPUT

  Max. recommended PV array power 10 kWp
  MPPT voltage range 110~950V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 20A/20 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 5000 W
  (AS 4777 4999 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-6.0-P
- PV INPUT

  Max. recommended PV array power 12 kWp
  MPPT voltage range 110~950V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 20A/20 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 6000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-8.0-P
- PV INPUT

  Max. recommended PV array power 16 kWp
  MPPT voltage range 110~950V
  No. of MPP. trackers / strings per MPPT 3(1/1/1)
  Max. input current per MPPT 20A / 20A / 20A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 8000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-10.0-P
- PV INPUT

  Max. recommended PV array power 20 kWp
  MPPT voltage range 110~950V
  No. of MPP. trackers / strings per MPPT 3(1/1/1)
  Max. input current per MPPT 20A/20A/20A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power
  10000 W
  (AS 4777 9999 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-12.0-P
- PV INPUT

  Max. recommended PV array power 24 kWp
  MPPT voltage range 110~950V
  No. of MPP. trackers / strings per MPPT 3(1/1/1)
  Max. input current per MPPT 20A/20A/20A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 12000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-15.0-P
- PV INPUT

  Max. recommended PV array power 30 kWp
  MPPT voltage range 110~950V
  No. of MPP. trackers / strings per MPPT 3(1/1/1)
  Max. input current per MPPT 20A/20A/20A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power
  15000 W
  (4S 4777 14999 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
