Single Phase Inverter

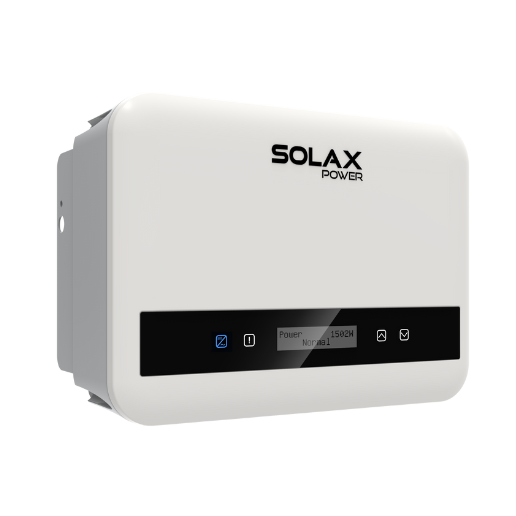

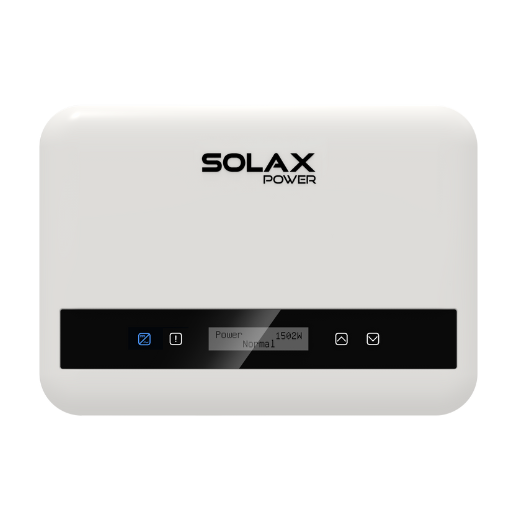

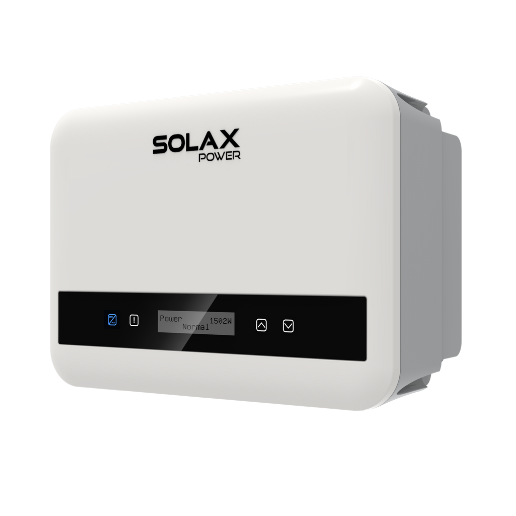

X1-MINI G4

0.6kW / 0.7kW / 0.8kW / 1.1kW / 1.5kW / 2kW / 2.5kW / 3kW / 3.3kW

X1-MINI G4 có kích thước siêu nhỏ gọn—nhỏ hơn cả một tờ giấy A4—thích hợp cho ban công hoặc không gian hẹp. Với khả năng hỗ trợ vận hành song song và quản lý tải thông minh, biến tần này được thiết kế để tích hợp linh hoạt và dễ dàng mở rộng.

Xem video
Tải dữ liệu

Product Advantage

Hỗ trợ vượt công suất PV đến 200% và đầu vào 16A, X1-MINI G4 được thiết kế để hỗ trợ pin công suất cao và theo dõi MPP toàn cầu. Dải MPPT siêu rộng cùng tính năng tối ưu hóa bóng râm đảm bảo hiệu suất phát điện tối đa trong mọi điều kiện.

Intelligent Design

10s data refresh on SolaXCloud
I-V curve diagnosis

Flexible Adaptability

Supports parallel operation for up to 5 inverters, no external EMS required
Smart loads management (e.g., heat pump, smart EV charger)

High Efficiency

200% PV oversizing and 16A input to support
High-power panels
Ultra-Wide MPPT voltage range
Global MPP tracking with shade optimization

Assured Safety

Type II SPD on AC&DC side
Ready for Rapid Shutdown function
AFCI support (optional)
Built-in export control function

Product Parameters

X1-MINI-0.6K-G4
X1-MINI-0.7K-G4
X1-MINI-0.8K-G4
X1-MINI-1.1K-G4
X1-MINI-1.5K-G4
X1-MINI-2.0K-G4
X1-MINI-2.5K-G4
X1-MINI-3.0K-G4
X1-MINI-3.3K-G4

X1-MINI-0.6K-G4
- PV INPUT

  Max. recommended PV array power 1.2 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 600 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-0.7K-G4
- PV INPUT

  Max. recommended PV array power 1.4 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 700 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-0.8K-G4
- PV INPUT

  Max. recommended PV array power 1.6 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 800 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-1.1K-G4
- PV INPUT

  Max. recommended PV array power 2.2 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 1100 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-1.5K-G4
- PV INPUT

  Max. recommended PV array power 3 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 1500 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-2.0K-G4
- PV INPUT

  Max. recommended PV array power 4 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 2000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-2.5K-G4
- PV INPUT

  Max. recommended PV array power 5 kWp
  MPPT voltage range 40 ~ 550 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 3000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.5 kg
X1-MINI-3.0K-G4
- PV INPUT

  Max. recommended PV array power 6 kWp
  MPPT voltage range 40 ~ 550 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 3000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.5 kg
X1-MINI-3.3K-G4
- PV INPUT

  Max. recommended PV array power 6.6 kWp
  MPPT voltage range 40 ~ 550 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 3300 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.5 kg
