Residential Batteries

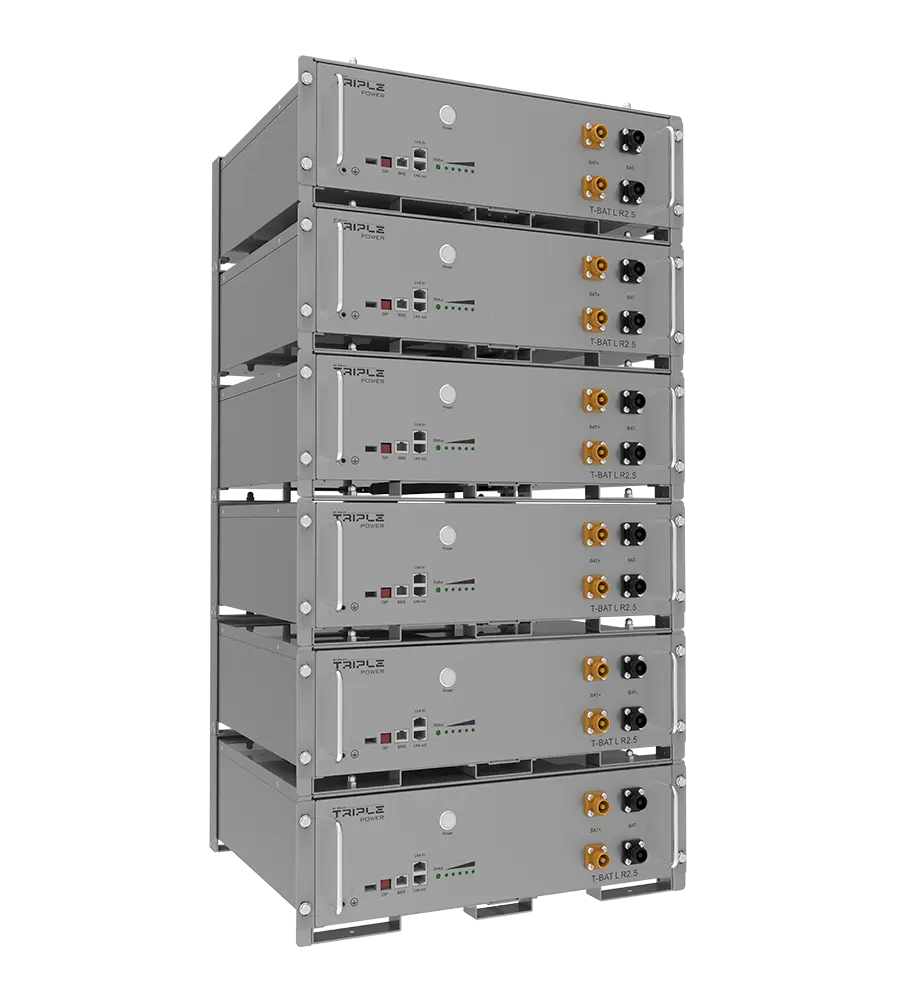

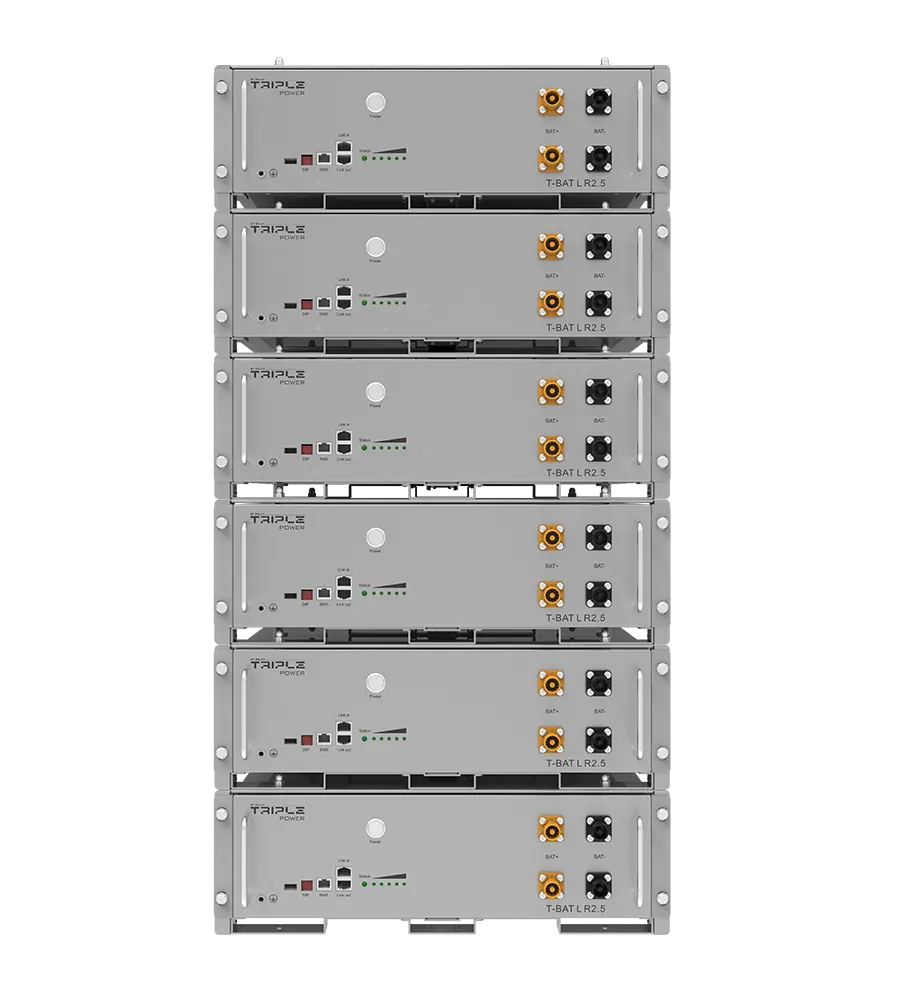

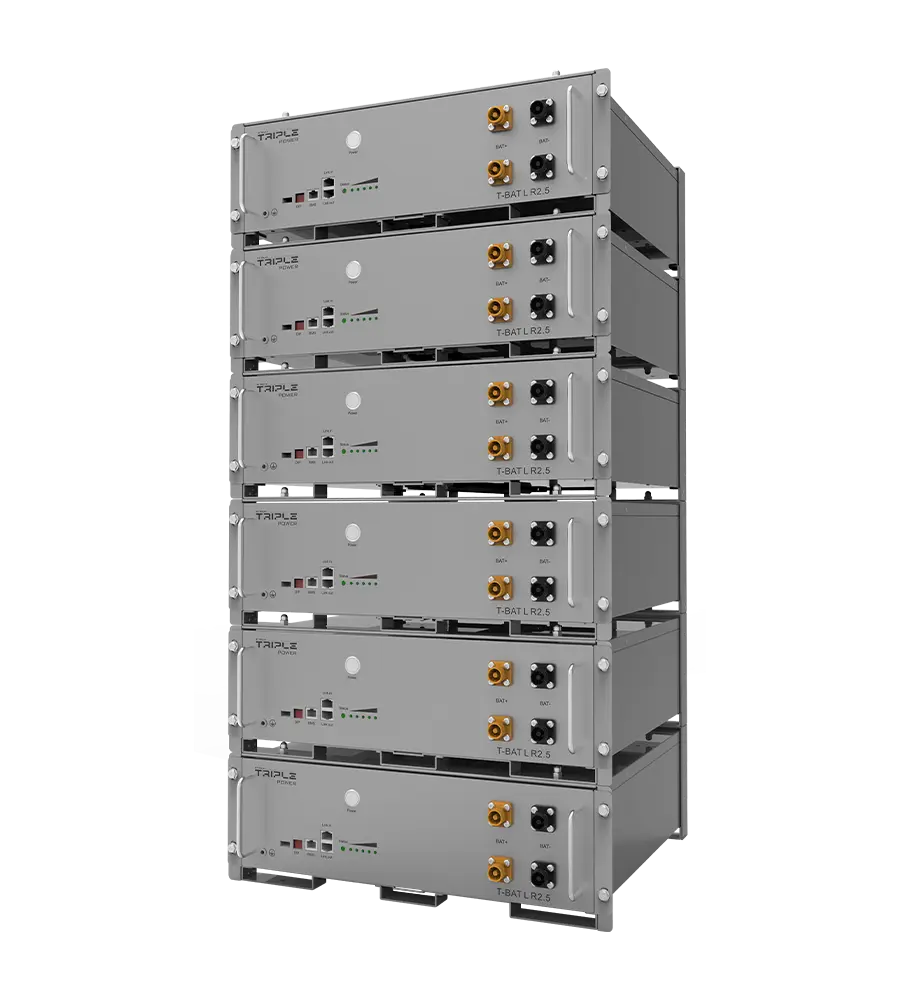

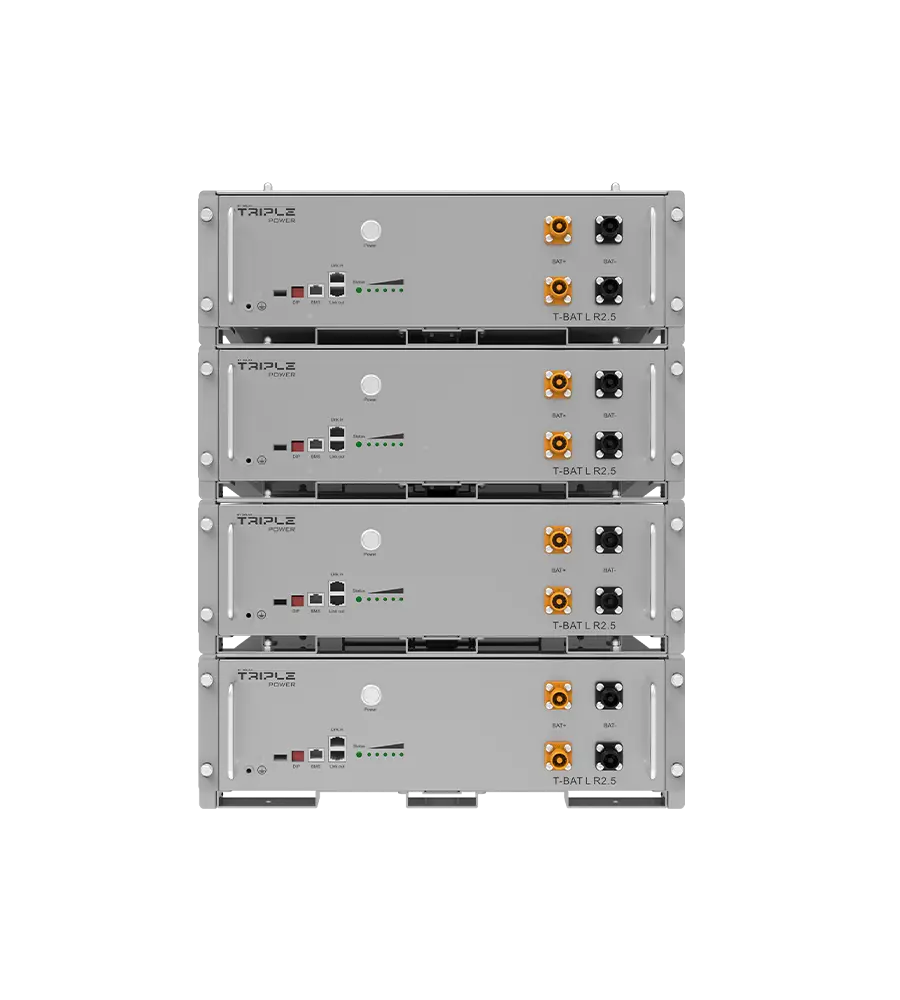

T-BAT-SYS-LV-R25

2.5 kWh-40.9 kWh

SolaX T-BAT-SYS-LV R25 là loại pin điện áp thấp được thiết kế cho mục đích dân dụng. Sử dụng công nghệ LFP an toàn, pin lưu trữ này hỗ trợ dải dung lượng rộng từ 2.5kWh đến 40.9kWh. Lý tưởng khi kết hợp với biến tần X1 HYBRID LV, lựa chọn hoàn hảo cho các gia đình cần giải pháp lưu trữ năng lượng mặt trời ổn định và dễ mở rộng.

Xem video
Tải dữ liệu

Product Advantage

T-BAT-SYS-LV R25 có tuổi thọ hơn 6000 chu kỳ, đảm bảo độ bền và hiệu suất truyền năng lượng. Chuẩn bảo vệ IP20 cùng tính năng khởi động mềm giúp bảo vệ pin an toàn khi điện áp đột biến. Hơn nữa, pin có thiết kế xếp chồng mô-đun hỗ trợ lắp đặt linh hoạt, từ treo tường, giá đỡ hay gắn tủ.

Assured Reliability

LiFePO4 battery cell & high-performance processors
IP20 protection degree
Soft start to protect from BAT and INV a sudden surge

High Performance

Cycle life > 6000 times
High capacity utilization
Efficient energy transfer

Smart Management

Remote fault diagnosis, upgrade and maintenance

Flexible Adaptability

Wall quick bracket, or cabinet mounting optional
Easy to scale up

Product Parameters

T-BAT LR2.5
T-BAT LR5.0
T-BAT LR7.5
T-BAT LR10.0
T-BAT LR12.5
T-BAT LR15.0
T-BAT LR17.5
T-BAT LR20.0
T-BAT LR22.5
T-BAT LR25.0
T-BAT LR27.5
T-BAT LR30.0
T-BAT LR32.5
T-BAT LR35.0
T-BAT LR37.5
T-BAT LR40.0

T-BAT LR2.5
- SYSTEM DATA

  Number of modules 1 Module
  Nominal capacity 2.5 kWh
  Max.output current 50 A
  Peak discharge current
  60 A (60 s)
  100 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR5.0
- SYSTEM DATA

  Number of modules 2 Module
  Nominal capacity 5.1 kWh
  Max.output current 85 A
  Peak discharge current
  120 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR7.5
- SYSTEM DATA

  Number of modules 3 Module
  Nominal capacity 7.6 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR10.0
- SYSTEM DATA

  Number of modules 4 Module
  Nominal capacity 10.2 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR12.5
- SYSTEM DATA

  Number of modules 5 Module
  Nominal capacity 12.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR15.0
- SYSTEM DATA

  Number of modules 6 Module
  Nominal capacity 15.3 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR17.5
- SYSTEM DATA

  Number of modules 7 Module
  Nominal capacity 17.9 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR20.0
- SYSTEM DATA

  Number of modules 8 Module
  Nominal capacity 20.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR22.5
- SYSTEM DATA

  Number of modules 9 Module
  Nominal capacity 23.0 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR25.0
- SYSTEM DATA

  Number of modules 10 Modules
  Nominal capacity 25.6 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR27.5
- SYSTEM DATA

  Number of modules 11 Modules
  Nominal capacity 28.1 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR30.0
- SYSTEM DATA

  Number of modules 12 Modules
  Nominal capacity 30.7 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR32.5
- SYSTEM DATA

  Number of modules 13 Modules
  Nominal capacity 33.2 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR35.0
- SYSTEM DATA

  Number of modules 14 Modules
  Nominal capacity 35.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR37.5
- SYSTEM DATA

  Number of modules 15 Modules
  Nominal capacity 38.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR40.0
- SYSTEM DATA

  Number of modules 16 Modules
  Nominal capacity 40.9 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
